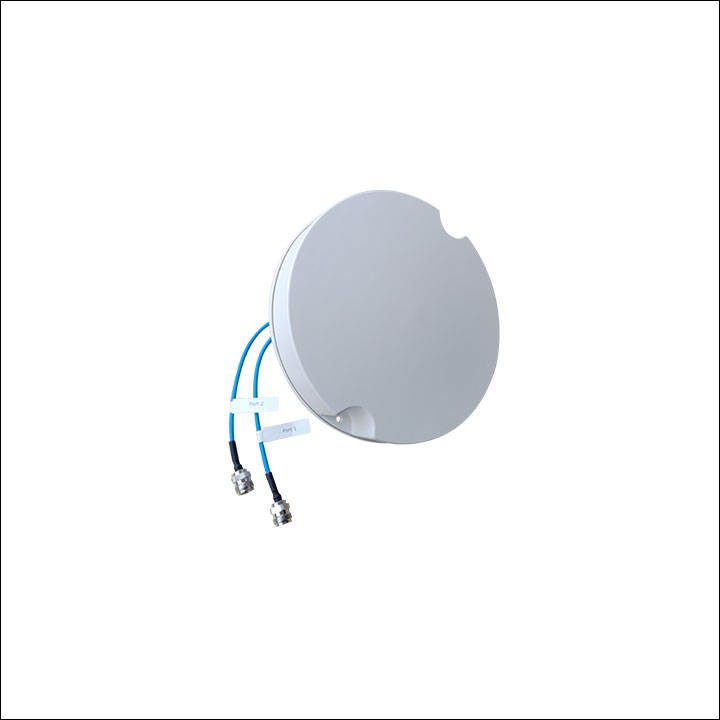

The MIMO Omni Ceiling Antenna is a top-of-the-line wireless communication solution that guarantees seamless and robust connectivity for your network. Operating within a wide frequency range of 698MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, and Wi-Fi. Whether you’re setting up a new wireless network or looking to enhance the performance of your existing one, the MIMO Omni Ceiling Antenna is the perfect choice for both residential and commercial applications.
Key Features:
- Multiple Input, Multiple Output (MIMO) Technology: The MIMO Omni Ceiling Antenna features advanced MIMO technology, enabling it to transmit and receive data through multiple spatial streams simultaneously. This ensures faster data rates, reduced interference, and improved overall network efficiency.
- Wide Frequency Range: With a frequency range spanning from 698MHz to 4000MHz, the MIMO Omni Ceiling Antenna offers excellent compatibility with various wireless networks, allowing for versatile use in diverse settings.
- High Gain Performance: The antenna provides a gain of 3dBi for the lower frequency band (698-960MHz) and 5dBi for the higher frequency band (1710-4000MHz). This high gain capability ensures optimal signal strength and coverage, even in challenging environments.
- ±45° Dual Slant Polarization: The MIMO Omni Ceiling Antenna features ±45° dual slant polarization, allowing for enhanced diversity in signal reception. This characteristic makes it suitable for areas with multi-path signal reflections and ensures stable connectivity.
- N Female Connector: Equipped with an N Female connector, the MIMO Omni Ceiling Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
- Sleek Ceiling-Mount Design: Designed to be discreet and unobtrusive, the antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment, making it an ideal choice for offices, hotels, conference rooms, and other public spaces.
- Easy Installation: The MIMO Omni Ceiling Antenna is easy to install, making it a convenient choice for both professional installers and DIY enthusiasts. Its installation process is hassle-free and time-efficient.
Technical Specifications:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-MOCA-0740-Q3501-NF | |||
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2700 | 3400-4000 |
| Gain(dBi) | 3.0 ± 1 | 4.0 ± 1 | 4.5 ± 1 | 5.0 ± 1 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 | ≤ 2.0 |
| Polarization Type | ± 45° | |||
| Vertical Beamwidth | 90° | 85° | 45° | 35° |
| Horizontal Beamwidth | 360° | |||
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Connector Type | N-Female | |||
| Weight | 0.5 Kg | |||
| Dimension | Φ 218 x 40 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Ceiling Installation | |||
