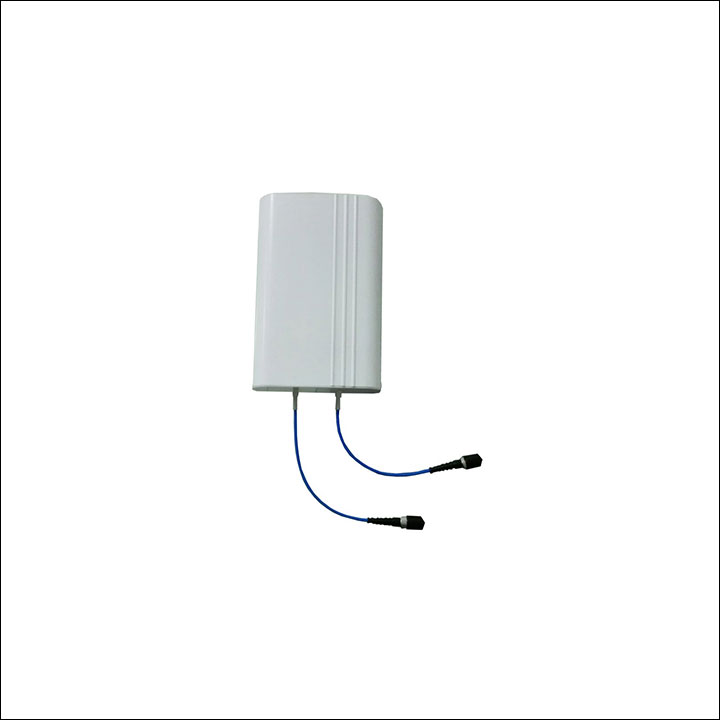

The MIMO Panel Antenna is a powerful wireless communication solution designed to enhance your network’s connectivity and performance. Operating within a wide frequency range of 698MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to extend the coverage of your existing network or establish a new one, the MIMO Panel Antenna is an excellent choice for both residential and commercial applications.
Key Features:
- Multiple Input, Multiple Output (MIMO) Technology: The MIMO Panel Antenna is equipped with advanced MIMO technology, allowing it to transmit and receive data through multiple spatial streams simultaneously. This results in improved data throughput, reduced signal interference, and enhanced overall network efficiency.
- Wide Frequency Range: Covering a frequency range from 698MHz to 4000MHz, the MIMO Panel Antenna offers exceptional compatibility with various wireless networks, making it suitable for diverse applications and environments.
- High Gain Performance: With a gain of 5dBi for the lower frequency band (698-960MHz) and 8dBi for the higher frequency band (1710-4000MHz), the MIMO Panel Antenna delivers strong signal strength and extended coverage, even in challenging locations.
- Linear H/V for Each Radiator: The MIMO Panel Antenna features linear horizontal (H) and vertical (V) polarization for each radiator, providing flexibility in signal direction and ensuring optimal reception in different orientations.
- N Female Connector: Equipped with an N Female connector, the MIMO Panel Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
- Versatile Panel Design: The antenna’s panel design allows for easy installation on walls, poles, or other suitable structures, making it suitable for both indoor and outdoor deployments.
- Durable Construction: Built to withstand various weather conditions, the MIMO Panel Antenna’s sturdy construction ensures long-lasting performance and reliability.
Key Features:
| Items | Specifications | ||||
|---|---|---|---|---|---|
| Model NO | SE-MPA-0740-VH5801-NF | ||||
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-2170 | 2200-2700 | 3400-4000 |
| Gain(dBi) | 5.0 ± 0.5 | 6.0 ± 0.5 | 7.0 ± 0.5 | 7.5 ± 0.5 | 8.5 ± 0.5 |
| VSWR | ≤ 1.8 | ||||
| Polarization Type | Linear H / V for each Radiator | ||||
| Vertical Beamwidth | 73° | 70° | 60° | 60° | 30° |
| Horizontal Beamwidth | 80° | 80° | 65° | 60° | 55° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | ||||
| Max Power | 50 W | ||||
| Input Impendence | 50 Ω | ||||
| Operating Temperature | -40 ℃ to +65 ℃ | ||||
| Relative Humidity | 5 to 95% | ||||
| Lightning Protection | DC ground | ||||
| Connector Type | N-Female | ||||
| Weight | 1.5 Kg | ||||
| Dimension | 400 x 180 x 62 mm (without connector) | ||||
| Radome Material | Uv-Protected ABS | ||||
| Radome Color | White | ||||
| Mounting Type | Wall Mounting | ||||
