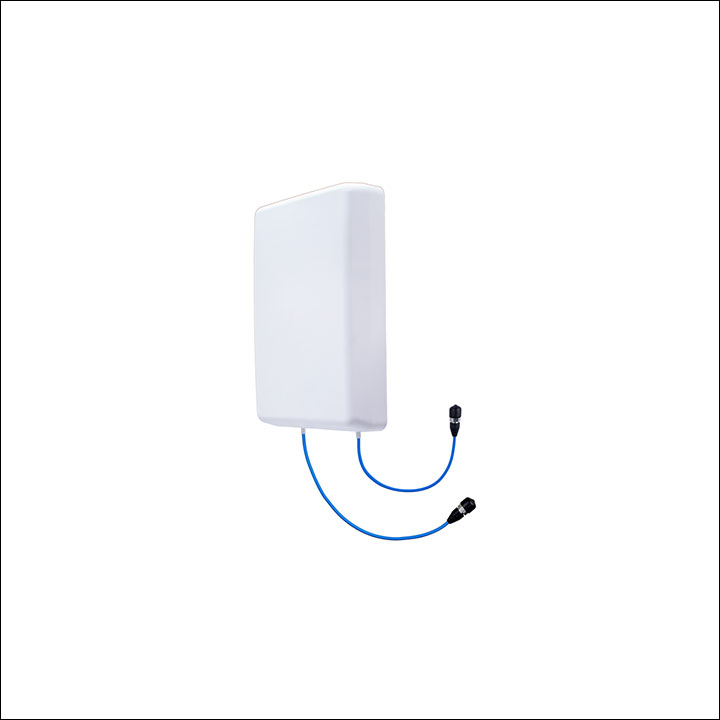

The MIMO Panel Antenna is an exceptional wireless communication solution designed to provide enhanced coverage and performance for your network. Operating within a broad frequency range of 617MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you’re looking to extend the range of your existing network or setting up a new one, the MIMO Panel Antenna is an ideal choice for both residential and commercial applications.
Key Features:
- Multiple Input, Multiple Output (MIMO) Technology: Equipped with MIMO technology, the MIMO Panel Antenna can transmit and receive data through multiple spatial streams simultaneously. This results in improved data throughput, reduced signal interference, and enhanced overall network efficiency.
- Wide Frequency Range: Covering a frequency range from 617MHz to 4000MHz, the MIMO Panel Antenna ensures excellent compatibility with a wide range of wireless networks, making it suitable for diverse applications.
- High Gain Performance: With a gain of 6dBi for the lower frequency band (617-960MHz) and 8dBi for the higher frequency band (1710-4000MHz), the MIMO Panel Antenna delivers robust signal strength and extensive coverage, even in densely populated areas.
- Linear H/V for Each Radiator: The MIMO Panel Antenna features linear horizontal (H) and vertical (V) polarization for each radiator, providing flexibility in signal direction and ensuring optimal reception in different orientations.
- N Female Connector: The MIMO Panel Antenna comes equipped with an N Female connector, offering a secure and reliable connection to compatible wireless devices or network equipment.
- Versatile Panel Design: Designed with versatility in mind, the antenna’s panel design allows for easy installation on walls, poles, or other suitable structures, making it suitable for both indoor and outdoor deployments.
- Durable Construction: Built to withstand various weather conditions, the MIMO Panel Antenna’s sturdy construction ensures long-lasting performance and reliability.
Technical Specifications:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-MPA-0640-VH6801-NF | |||
| Frequency Range(MHz) | 617-960 | 1710-2170 | 2300-2700 | 3300-4000 |
| Gain(dBi) | 6.0 ± 1 | 8.0 ± 1 | 8.0 ± 1 | 7.0 ± 1 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 | ≤ 1.8 |
| Polarization Type | Linear H / V for each Radiator | |||
| Isolation(dB) | ≥ 12 | ≥ 20 | ≥ 20 | ≥ 24 |
| Front to Back Ratio (dB) | ≥ 7 | ≥ 20 | ≥ 20 | ≥ 24 |
| Horizontal Beamwidth | 90° | 65° | 65° | 45° |
| Vertical Beamwidth | 78° | 60° | 60° | 38° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Connector Type | 2 x N-Female | |||
| Weight | 0.45 Kg | |||
| Dimensions | 315 x 195 x 68 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Wall Mounting | |||
