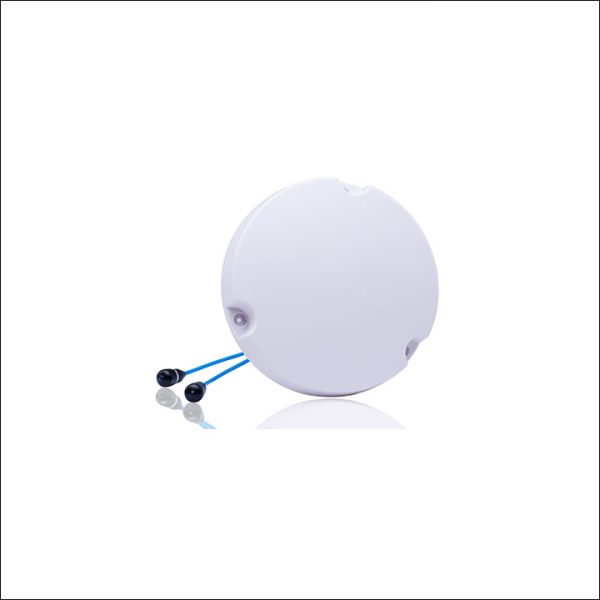

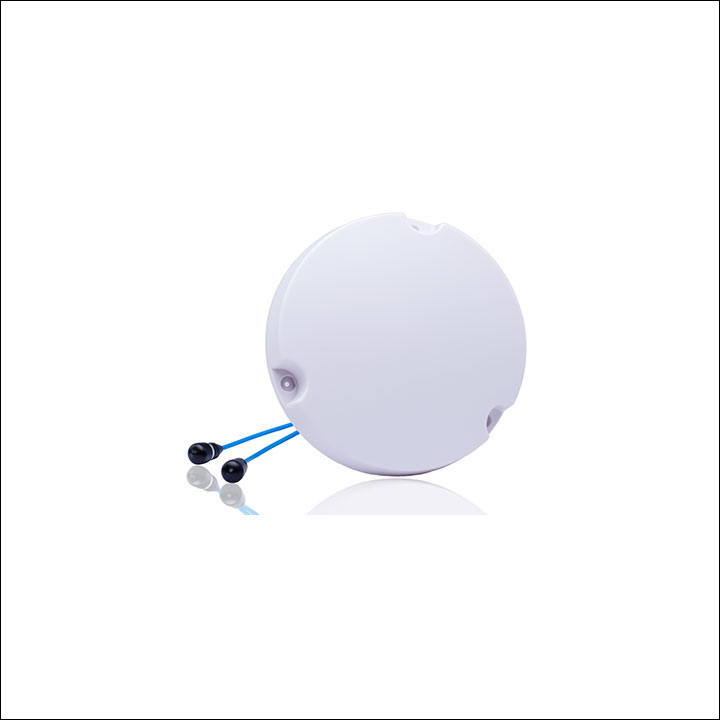

The MIMO Omni Ceiling Antenna is an advanced and versatile wireless communication solution designed to provide seamless connectivity for your network. Operating within a frequency range of 617MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to improve the coverage of your existing network or establish a new one, the MIMO Omni Ceiling Antenna is an excellent choice for both residential and commercial applications.
Key Features:
- Wide Frequency Range: Covering a frequency range from 617MHz to 4000MHz, the MIMO Omni Ceiling Antenna offers excellent compatibility with diverse wireless networks, making it suitable for various applications and environments.
- Dual Gain Performance: This antenna provides a gain of 3dBi for the lower frequency band (617-960MHz) and 5dBi for the higher frequency band (1710-4000MHz). The dual gain capability ensures reliable signal strength and expanded coverage.
- Linear H/V for Each Radiator: Featuring linear horizontal (H) and vertical (V) polarization for each radiator, the MIMO Omni Ceiling Antenna provides flexibility in signal direction, ensuring optimal reception in different orientations.
- N Female Connector: Equipped with an N Female connector, the MIMO Omni Ceiling Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
- Sleek Ceiling-Mount Design: The antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment, making it ideal for offices, hotels, conference rooms, and other public spaces.
- Easy Installation: Installing the MIMO Omni Ceiling Antenna is a hassle-free process, making it a convenient choice for both professional installers and do-it-yourself enthusiasts.
Technical Specifications:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-MOCA-0640-VH3501-NF | |||
| Frequency Range(MHz) | 617-960 | 1710-2170 | 2300-2700 | 3300-4000 |
| Gain(dBi) | 3.0 ± 1 | 4.0 ± 1 | 5.0 ± 1 | 5.0 ± 1 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 | ≤ 1.8 |
| Polarization Type | Linear H / V for each Radiator | |||
| Isolation(dB) | 19 | 23 | 23 | 23 |
| Horizontal Beamwidth | 360° | |||
| Vertical Beamwidth | 95° | 90° | 46° | 38° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Connector Type | 2 x N-Female | |||
| Weight | 0.45 Kg | |||
| Dimensions | Φ 250 x 47 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Ceiling Installation | |||
