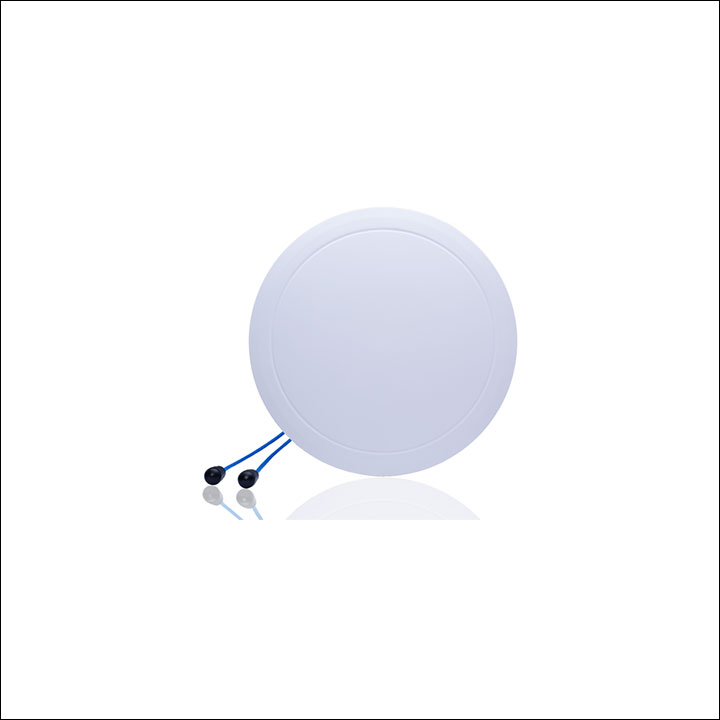

The MIMO Omni Ceiling Antenna is a cutting-edge wireless communication solution designed to significantly improve your network coverage and connectivity. This antenna operates within a broad frequency range of 617-4000MHz, ensuring compatibility with various wireless devices and networks. Whether you’re setting up a new wireless infrastructure or looking to enhance the performance of your existing one, the MIMO Omni Ceiling Antenna is an excellent choice for both commercial and residential applications.
Key Features:
- Multiple Input, Multiple Output (MIMO) Technology: this antenna supports MIMO technology, allowing it to transmit and receive data through multiple spatial streams simultaneously. This leads to improved data throughput, reduced interference, and better overall network performance.
- Wide Frequency Range: With a frequency range spanning from 617MHz to 4000MHz, this antenna is versatile and adaptable to various wireless networks, including 4G LTE, 5G, Wi-Fi, and more.
- High Gain Performance: This antenna offers a gain of 3dBi for 617-960MHz and 6dBi for 1710-4000MHz, ensuring that signals are transmitted and received efficiently, even in challenging environments.
- Sleek Ceiling-Mount Design: Designed to be discreet and unobtrusive, the antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment. It’s an ideal choice for settings like offices, hotels, conference rooms, shopping malls, and public spaces.
- N Female Connector: The antenna comes equipped with an N Female connector, which offers a secure and reliable connection to compatible wireless devices or network equipment.
- Horizontal Polarization: The MIMO Omni Ceiling Antenna features horizontal polarization, providing wide coverage and stable connectivity throughout the designated area.
- Easy Installation: Installing the MIMO Omni Ceiling Antenna is a breeze, making it a convenient choice for both professional installers and do-it-yourself enthusiasts.
Technical Specification:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-MOCA-0640-H3601-NF | |||
| Frequency Range(MHz) | 617-960 | 1710-2170 | 2300-2700 | 3300-4000 |
| Gain(dBi) | 3.0 ± 1 | 4.0 ± 1 | 6.0 ± 1 | 5.5 ± 1 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 | ≤ 1.8 |
| Polarization Type | Horizontal | |||
| Isolation(dB) | 20 | 23 | 23 | 23 |
| Horizontal Beamwidth | 360° | |||
| Vertical Beamwidth | 110° | 68° | 29° | 30° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50W | |||
| Input Impendence | 50Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Connector Type | 2 x N-Female | |||
| Weight | 0.4 Kg | |||
| Dimensions | Φ 280 x 19 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Ceiling Installation | |||
