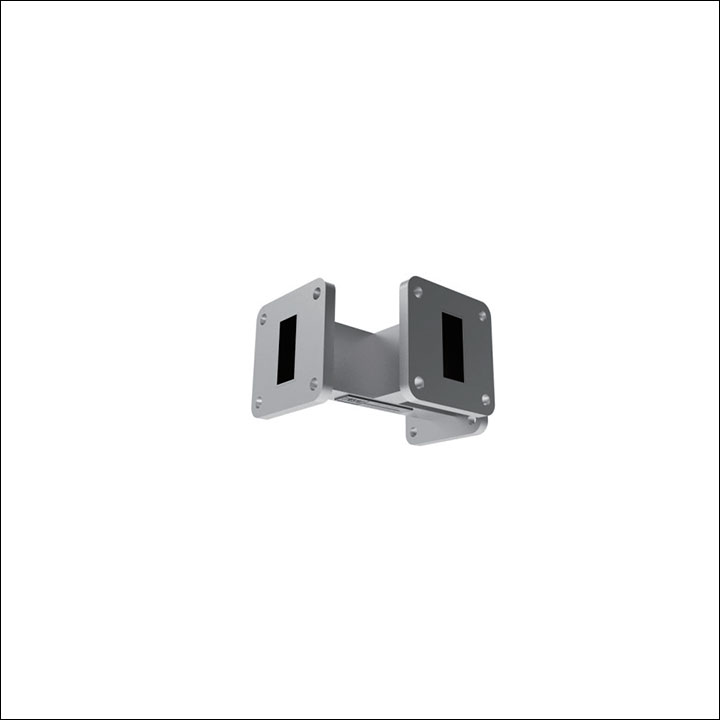

The Waveguide ET Connector represents a crucial innovation in the realm of waveguide technology. As a specialized connector, it plays a pivotal role in enabling seamless and efficient connections between different waveguide components. With its precision engineering and robust design, the ET connector ensures enhanced signal transfer and reduced signal loss, making it an indispensable component in a wide range of applications, including satellite communications, radar systems, and microwave engineering. This product description will explore the key features and advantages of the Waveguide ET Connector, showcasing its ability to facilitate reliable and high-performance signal transmission.
Key Features
- Precision Machining: The Waveguide ET Connector is meticulously machined with utmost precision, ensuring a tight and accurate fit between waveguide elements. This precision connection reduces signal reflections and attenuations, optimizing signal transfer efficiency.
- Broadband Compatibility: Designed to support a wide range of frequencies, the ET connector can accommodate various waveguide sizes and types, making it adaptable to diverse applications with different frequency bands.
- Robust Construction: Built to withstand demanding environments, the ET connector is constructed from durable materials, ensuring longevity and reliability even in harsh conditions.
Technical Specifications
| Type | National Standard | Frequency range (GHz) | Working bandwith | Symmetry(dB) | Port E standing wave ratio | Insertion loss(dB) | Flange | Material | Plating |
|---|---|---|---|---|---|---|---|---|---|
| SE-2300WET | BJ3 | 0.32-0.49 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-2100WET | BJ4 | 0.35-0.53 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1800WET | BJ5 | 0.41-0.62 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1500WET | BJ6 | 0.49-0.75 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1150WET | BJ8 | 0.64-0.98 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-975WET | BJ9 | 0.75-1.15 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-770WET | BJ12 | 0.96-1.46 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-650WET | BJ14 | 1.13-1.73 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-510WET | BJ18 | 1.45-2.20 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-430WET | BJ22 | 1.72-2.61 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-340WET | BJ26 | 2.17-3.30 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-284WET | BJ32 | 2.60-3.95 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-229WET | BJ40 | 3.22-4.90 | ≤5% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-187WET | BJ48 | 3.94-5.99 | ≤5% | ±0.35 | ≤1.20 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-159WET | BJ58 | 4.64-7.05 | ≤5% | ±0.35 | ≤1.20 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-137WET | BJ70 | 5.38-8.17 | ≤5% | ±0.35 | ≤1.20 | ≤0.3 | FDP | Copper | Silvering |
| SE-112WET | BJ84 | 6.57-9.99 | ≤5% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-90WET | BJ100 | 8.20-12.40 | ≤5% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-75WET | BJ120 | 9.84-15.0 | ≤5% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-62WET | BJ140 | 11.9-18.0 | ≤5% | ±0.40 | ≤1.25 | ≤0.3 | FBP | Copper | Silvering |
| SE-51WET | BJ180 | 14.5-22.0 | ≤5% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-42WET | BJ220 | 17.6-26.7 | ≤5% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-34WET | BJ260 | 21.7-33.0 | ≤5% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-28WET | BJ320 | 26.5-40.0 | ≤5% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-22WET | BJ400 | 32.9-50.1 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-18WET | BJ500 | 39.2-59.6 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-14WET | BJ620 | 49.8-75.8 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-12WET | BJ740 | 60.5-91.9 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-10WET | BJ900 | 73.8-112 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
