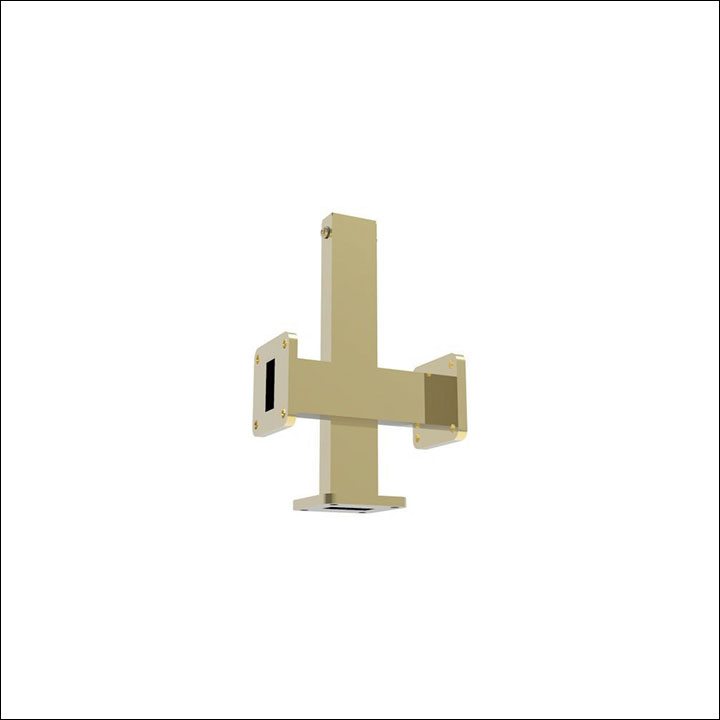

The Waveguide Cross Directional Coupler is a highly efficient device designed to split and distribute electromagnetic signals in waveguide systems. As a critical component in microwave and radio frequency applications, this coupler enables precise power division between two interconnected waveguides. With its innovative design and superior performance, the Waveguide Cross Directional Coupler finds applications in diverse fields, including telecommunications, radar systems, and wireless communication networks. In this product description, we will explore the key features and benefits of the Waveguide Cross Directional Coupler, showcasing its role in enabling efficient signal splitting and distribution.
Key Features
- Cross-Coupling Architecture: The Waveguide Cross Directional Coupler’s cross-coupling design allows for the efficient transfer of energy from one waveguide to another, enabling precise power splitting and distribution.
- High Isolation: The coupler’s design ensures high isolation between the input and output ports, minimizing signal interference and crosstalk between the interconnected waveguides.
- Broadband Operation: Engineered to support a wide frequency range, the Waveguide Cross Directional Coupler is versatile and compatible with various microwave and radio frequency applications.
Technical Specifications
| Type | National Standard | Frequency range (GHz) | Working bandwidth | Main standing wave ratio | Secondary standing wave ratio | Optional Coupling degree(dB) | Directivity (dB) | Flange | Coupling output joint | Overall dimension (mm) LxL1xL2 | Material | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE-770WL+C...N | BJ12 | 0.96-1. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 400X | Aluminium | Oxidation |
| SE-650WL+C...N | BJ14 | 1.13-1. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 320X | Aluminium | Oxidation |
| SE-510WL+C...N | BJ18 | 1.45-2. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 285X | Aluminium | Oxidation |
| SE-430WL+C...N | BJ22 | 1.72-2. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 240X | Aluminium | Oxidation |
| SE-340WL+C...N | BJ26 | 2.17-3. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 190X | Aluminium | Oxidation |
| SE-284WL+C...N | BJ32 | 2.60-3. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 180X | Aluminium | Oxidation |
| SE-229WL+C...N | BJ40 | 3.22-4. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 170X | Aluminium | Oxidation |
| SE-187WL+C...N | BJ48 | 3.94-5. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 137X | Aluminium | Oxidation |
| SE-159WL+C...N | BJ58 | 4.64-7. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 120X | Aluminium | Oxidation |
| SE-137WL+C...N | BJ70 | 5.38-8. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FDP | N-K | 90X150 | Aluminium | Oxidation |
| SE-112WL+C...N | BJ84 | 6.57-9. | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FBP | N-K | 82X120 | Copper | Silvering |
| SE-90WL+C...N | BJ100 | 8.20-12 | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FBP | N-K | 70X85X | Copper | Silvering |
| SE-75WL+C...N | BJ120 | 9.84-15 | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FBP | N-K | 60X83X | Copper | Silvering |
| SE-62WL+C...N | BJ140 | 11.9-18 | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FBP | SAM-K | 60X65X | Copper | Silvering |
| SE-51WL+C...N | BJ180 | 14.5-22 | ≤20% | ≤1.10 | ≤1.25 | 20〜60 | ≥15 | FBP | SAM-K | 60X70X | Copper | Silvering |
| SE-42WL+C...N | BJ220 | 17.6-26 | ≤20% | ≤1.10 | ≤1.5 | 20〜60 | ≥15 | FBP | 2.92-K | 65X54X | Copper | Silvering |
| SE-34WL+C...N | BJ260 | 21.7-33 | ≤20% | ≤1.10 | ≤1.5 | 20〜60 | ≥15 | FBP | 2.92-K | 60X50X | Copper | Silvering |
| SE-28WL+C...N | BJ320 | 26.5-40 | ≤20% | ≤1.10 | ≤1.5 | 20〜60 | ≥15 | FBP | 2.92-K | 42X50X | Copper | Silvering |
