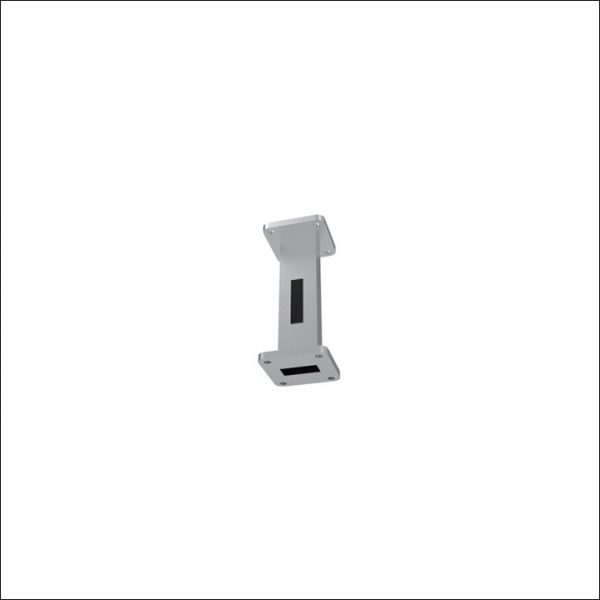

The Straight Waveguide represents a fundamental and essential component in the field of optical communications. As a guiding structure for light propagation, this waveguide offers a straightforward yet highly efficient means of transmitting optical signals in various applications, including fiber optic communications, laser systems, and photonic devices. In this product description, we will explore the key features and benefits of the Straight Waveguide, highlighting its significant role in enabling seamless and reliable optical signal transmission.
Key Features
- Simple Design: The Straight Waveguide boasts a simple and streamlined design, allowing for easy integration into optical systems. Its uncomplicated structure ensures a smooth path for light signals, reducing losses and maintaining signal integrity during transmission.
- High Transmission Efficiency: Due to its straight path, this waveguide exhibits minimal signal bending and scattering, leading to high transmission efficiency. The reduction in signal losses ensures that optical signals reach their destination with little to no degradation.
- Versatile Material Compatibility: The Straight Waveguide can be fabricated using a wide range of materials, such as glass, silicon, or polymer-based materials. This versatility in material selection allows for tailored waveguide properties to suit specific application requirements.
Technical Specifications
| Type | National standard | Frequency range(GHz) | Standing wave ratio | Length range(mm) | Flange | Material | Plating |
|---|---|---|---|---|---|---|---|
| SE-2300WALxxPM | BJ3 | 0.32-0.49 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-2100WALxxPM | BJ4 | 0.35-0.53 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-1800WALxxPM | BJ5 | 0.41-0.62 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-1500WALxxPM | BJ6 | 0.49-0.75 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-1150WALxxPM | BJ8 | 0.64-0.98 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-975WALxxPM | BJ9 | 0.75-1.15 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-770WALxxPM | BJ12 | 0.96-1.46 | ≤1.05 | 0.2-500 | FDP/FDM | Aluminium | Oxidation |
| SE-650WALxxPM | BJ14 | 1.13-1.73 | ≤1.05 | 0.2-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-51OWALxxPM | BJ18 | 1. 45-2.20 | ≤1.05 | 0.2-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-430WALxxPM | BJ22 | 1.72-2.61 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-340WALxxPM | BJ26 | 2.17-3.30 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-284WALxxPM | BJ32 | 2.60-3.95 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-229WALxxPM | BJ40 | 3.22-4.90 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-187WALxxPM | BJ48 | 3.94-5 .99 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-159WALxxPM | BJ58 | 4.64-7.05 | ≤1.05 | 0.1-2000 | FDP/FDM | Aluminium | Oxidation |
| SE-137WALxxPM | BJ70 | 5.38-8.17 | ≤1.1 | 0.1-2000 | FDP/FDM | Copper | Silvering |
| SE-110WALxxPM | BJ84 | 6.57-9.99 | ≤1.1 | 0.1-2000 | FDP/FDM | Copper | Silvering |
| SE-90WALxxPM | BJ100 | 8.20-12.40 | ≤1.1 | 0.1-2000 | FDP/FDM | Copper | Silvering |
| SE-75WALxxPM | BJ120 | 9.84-15.0 | ≤1.1 | 0.1-2000 | FDP/FDM | Copper | Silvering |
| SE-62WALxxPM | BJ140 | 11.9-18.0 | ≤1.1 | 0.1-1000 | FDP/FDM | Copper | Silvering |
| SE-51WALxxPM | BJ180 | 14.5-22.0 | ≤1.1 | 0.1-1000 | FDP/FDM | Copper | Silvering |
| SE-42WALxxPM | BJ220 | 17.6-26.7 | ≤1.1 | 0.1-600 | FDP/FDM | Copper | Silvering |
| SE-34WALxxPM | BJ260 | 21.7-33.0 | ≤1.1 | 0.1-600 | FDP/FDM | Copper | Silvering |
| SE-28WALxxPM | BJ320 | 26.5-40.0 | ≤1.1 | 0.1-500 | FDP/FDM | Copper | Silvering |
| SE-22WALxx | BJ400 | 32.9-50.1 | ≤1.15 | 0.1-300 | FDP/FDM | Copper | Gilding |
| SE-18WALxx | BJ500 | 39.2-59.6 | ≤1.15 | 0.1-300 | FUGP | Copper | Gilding |
| SE-14WALxx | BJ620 | 49.8-75.8 | ≤1.15 | 0.1-300 | FUGP | Copper | Gilding |
| SE-12WALxx | BJ740 | 60.5-91.9 | ≤1.15 | 0.1-300 | FUGP | Copper | Gilding |
| SE-10WALxx | BJ900 | 73.8-112 | ≤1.15 | 0.1-300 | FUGP | Copper | Gilding |
| SE-8WALxx | BJ1200 | 92.2-140 | - | 0.1-100 | FUGP | Copper | Gilding |
| SE-7WALxx | BJ1400 | 113-173 | - | 0.1-100 | FUGP | Copper | Gilding |
| SE-5WALxx | BJ1800 | 145-220 | - | 0.1-100 | FUGP | Copper | Gilding |
| SE-4WALxx | BJ2200 | 172-261 | - | 0.1-50 | FUGP | Copper | Gilding |
