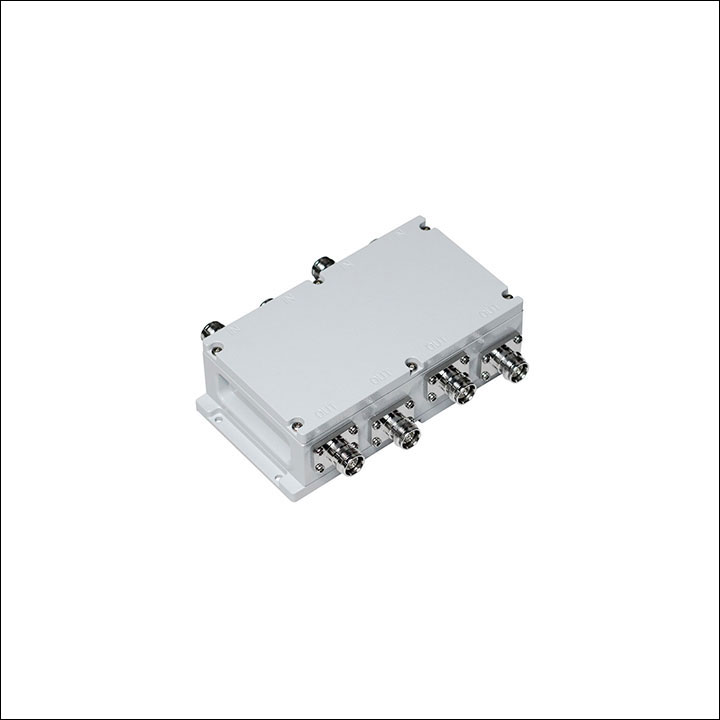

Upgrade your communication infrastructure with our advanced 4 in 4 out Hybrid Coupler, designed to provide you with enhanced connectivity and signal distribution. Operating efficiently within a wide frequency range of 698MHz to 3800MHz, this coupler is versatile enough to cater to various communication applications. Whether you need reliable signal splitting or combining, our Hybrid Coupler ensures seamless and uninterrupted connectivity.
Key Features:
- Wide Frequency Range: The 4 in 4 out Hybrid Coupler supports an extensive frequency range from 698MHz to 3800MHz, making it ideal for diverse communication systems. It efficiently handles multiple frequency bands, ensuring consistent and reliable signal distribution for all your devices and networks.
- Efficient Signal Splitting and Combining: With its 4 in 4 out configuration, this coupler excels at dividing input signals into four output paths and combining signals from different sources. This capability is essential for applications such as distributed antenna systems (DAS), cellular networks, and other setups that require precise signal distribution and combining.
- 4.3-10 Female Connectors: Equipped with 4.3-10 Female connectors, the Hybrid Coupler provides secure and low-loss connections. These connectors are known for their exceptional performance, minimizing signal interference and maximizing connectivity.
- High-Quality Build: Our Hybrid Coupler is built to the highest standards, ensuring durability and reliable performance even in challenging environmental conditions. Its sturdy construction guarantees a long lifespan, making it a cost-effective solution for your connectivity needs.
- User-Friendly Installation: Installing the Hybrid Coupler into your existing communication infrastructure is hassle-free. Its user-friendly design streamlines the integration process, reducing setup time and effort.
- Compact and Space-Saving: Despite its advanced capabilities, the Hybrid Coupler features a compact design, allowing for easy installation in areas with limited space. Its space-saving design does not compromise on signal performance, ensuring optimal connectivity.
Technical Specifications:
| Items | Specifications |
|---|---|
| Part No | SE-HC-44-0738-MF |
| Frequency Range | 698-3800MHz |
| Insertion Loss | ≤7.2dB |
| Isolation | ≥23dB |
| VSWR | ≤1.3 |
| 3rd Order IMD | ≤-155dBc(+43dBm×2) |
| Input Power | 300W |
| Impedance | 50Ω |
| Protection Level | IP65 |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -25℃-+65℃ |
| Connector Type | 4.3-10 Female |
