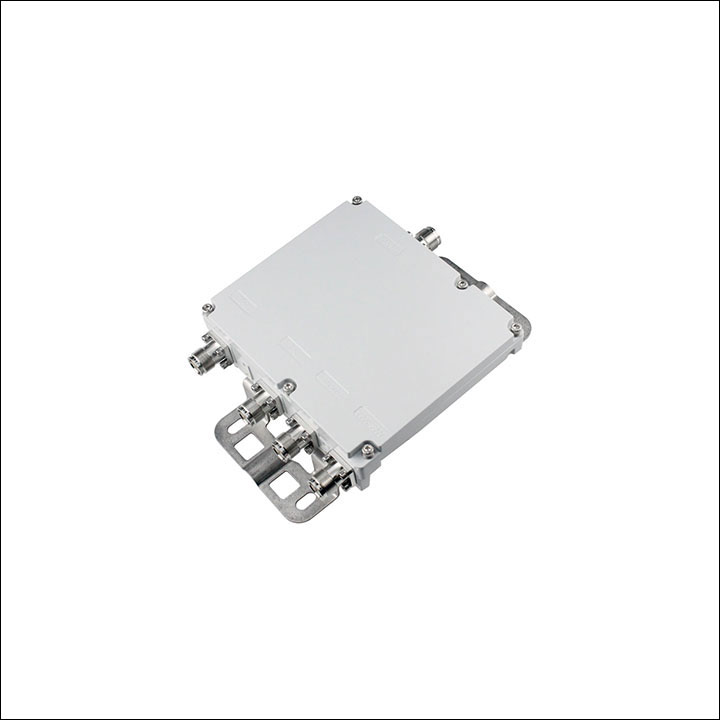

The Quadplexer and Multi-band Combiner is an advanced and versatile telecommunications device that ensures enhanced connectivity and optimized signal efficiency across multiple frequency bands. With its remarkable frequency support ranging from 698 to 960MHz, 1710 to 2170MHz, 2300 to 2690MHz, and 3300 to 3800MHz, this device offers unparalleled versatility, making it an indispensable component for various applications. The 4.3-10 Female connector ensures secure and reliable connections, making it ideal for critical communication networks and demanding environments. Whether you need it for wireless communication systems, mobile networks, or any other telecommunication setup, the Quadplexer and Multi-band Combiner deliver outstanding performance, enabling uninterrupted communication and seamless data exchange.
Key Features
- Efficient Signal Management: The Quadplexer and Multi-band Combiner excel in efficiently managing signals across multiple frequency bands, ensuring seamless communication without signal interference or degradation.
- Wide Frequency Coverage: With its ability to support frequencies ranging from 698 to 960MHz, 1710 to 2170MHz, 2300 to 2690MHz, and 3300 to 3800MHz, this device provides extensive coverage, catering to diverse operational requirements.
- Secure and Reliable Connections: The 4.3-10 Female connector guarantees secure and reliable connections, minimizing signal loss and maintaining robust communication links, even in challenging environmental conditions.
- Space-Saving Design: Its compact and space-saving design facilitates easy integration into existing telecommunication systems, streamlining installations and contributing to overall network efficiency.
- Low Insertion Loss: The Quadplexer and Multi-band Combiner boast low insertion loss, preserving signal integrity during transmission, resulting in reliable data transfer and reception.
- Exceptional Performance: Crafted with precision and built with high-quality materials, this device delivers exceptional performance, ensuring consistent and reliable operation over extended periods.
Technical Specifications
| Items | Specifications |
|---|---|
| Part No | SE-CB-4W-DKRQ-MF |
| Frequency Range | 698-960MHz | 1710-2170MHz | 2300-2690MHz | 3300-3800MHz |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| VSWR | ≤1.3 |
| 3rd Order IMD | ≤-155dBc(+43dBm×2) |
| Input Power | 300W |
| Impedance | 50Ω |
| Protection Level | IP65 |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -25℃-+65℃ |
| Connector Type | 4.3-10 Female |
